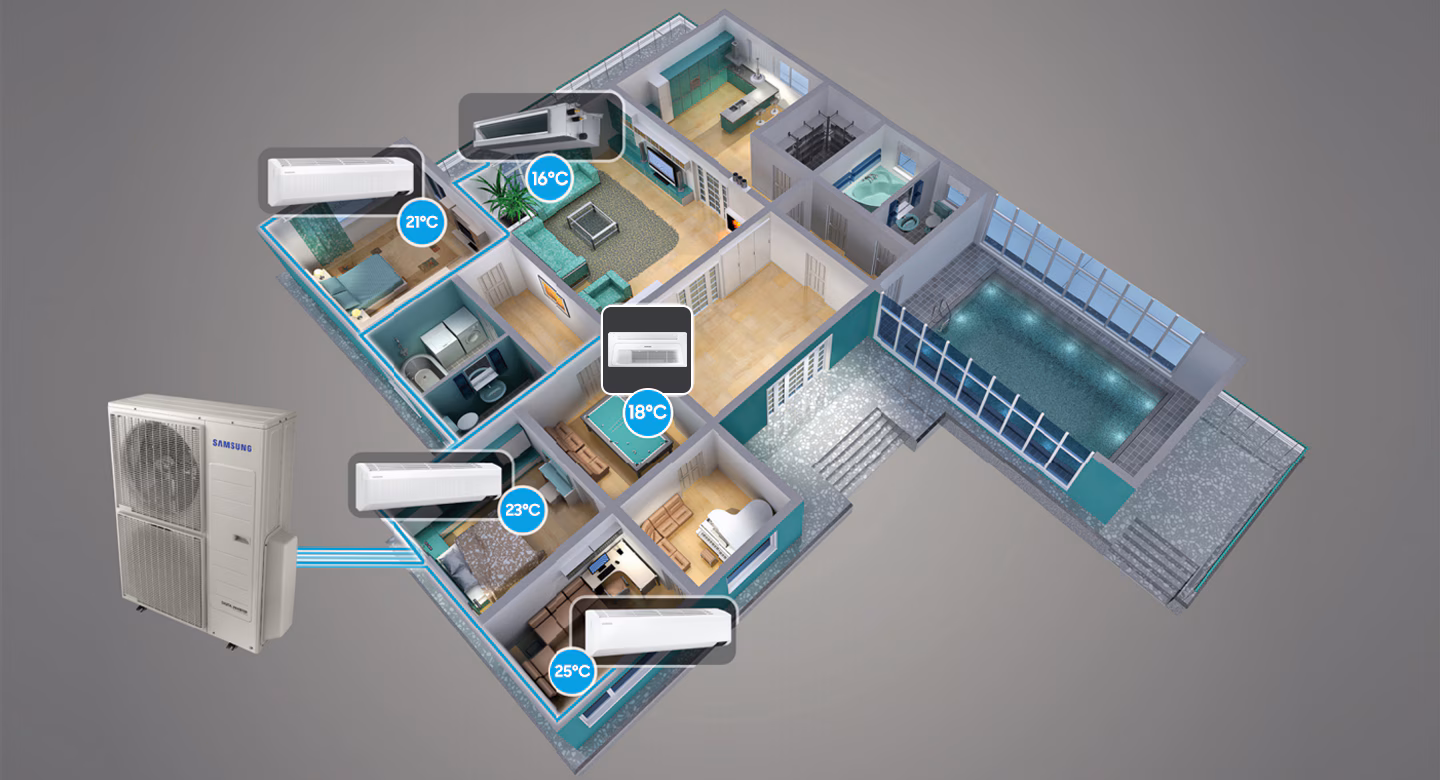

The outdoor unit of a multi-split system - one unit drives from 2 to 5 indoor units, so only a single condenser appears on the façade. Each room is controlled independently, and you can freely mix indoor unit types: wall-mounted, ducted or cassette.
Request a quote| Model | AJ050TXJ2KH-EA |
|---|---|
| Type | FJM - universal outdoor unit (multi-split) |
| Cooling | 5.0 kW |
| Heating | 5.7 kW |
| Indoor units | 2 |
| Model range | AJ050TXJ2KH 5.0 · AJ068TXJ3KH 6.8 · AJ080TXJ4KH 8.0 · AJ100TXJ5KH 10.0 · AJ140TXJ5KH 14.0 kW |
| Refrigerant | R410A |
| Compressor | Twin BLDC, inverter |
| Dimensions (10 kW model) | 940 × 998 × 330 mm |
| Control | SmartThings · BMS |
Electrical supply figures for a specific model are confirmed together with the quotation.
From 2 to 5 indoor units on a single condenser. The façade stays clean, plant space is saved, and each room is controlled independently of the others.

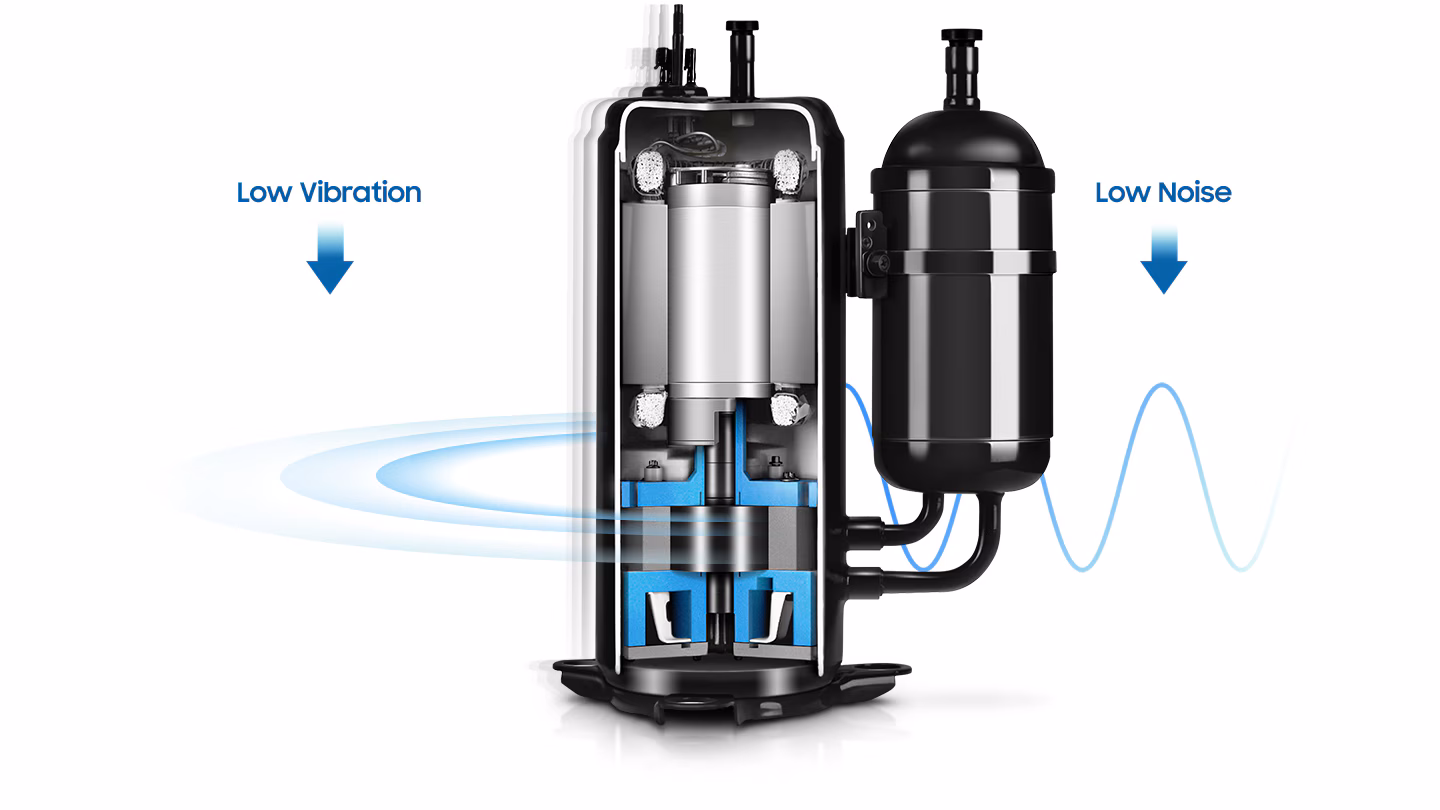

Two rotors share the load - less vibration, smoother running and high efficiency at part load, which is where the system spends most of its time.

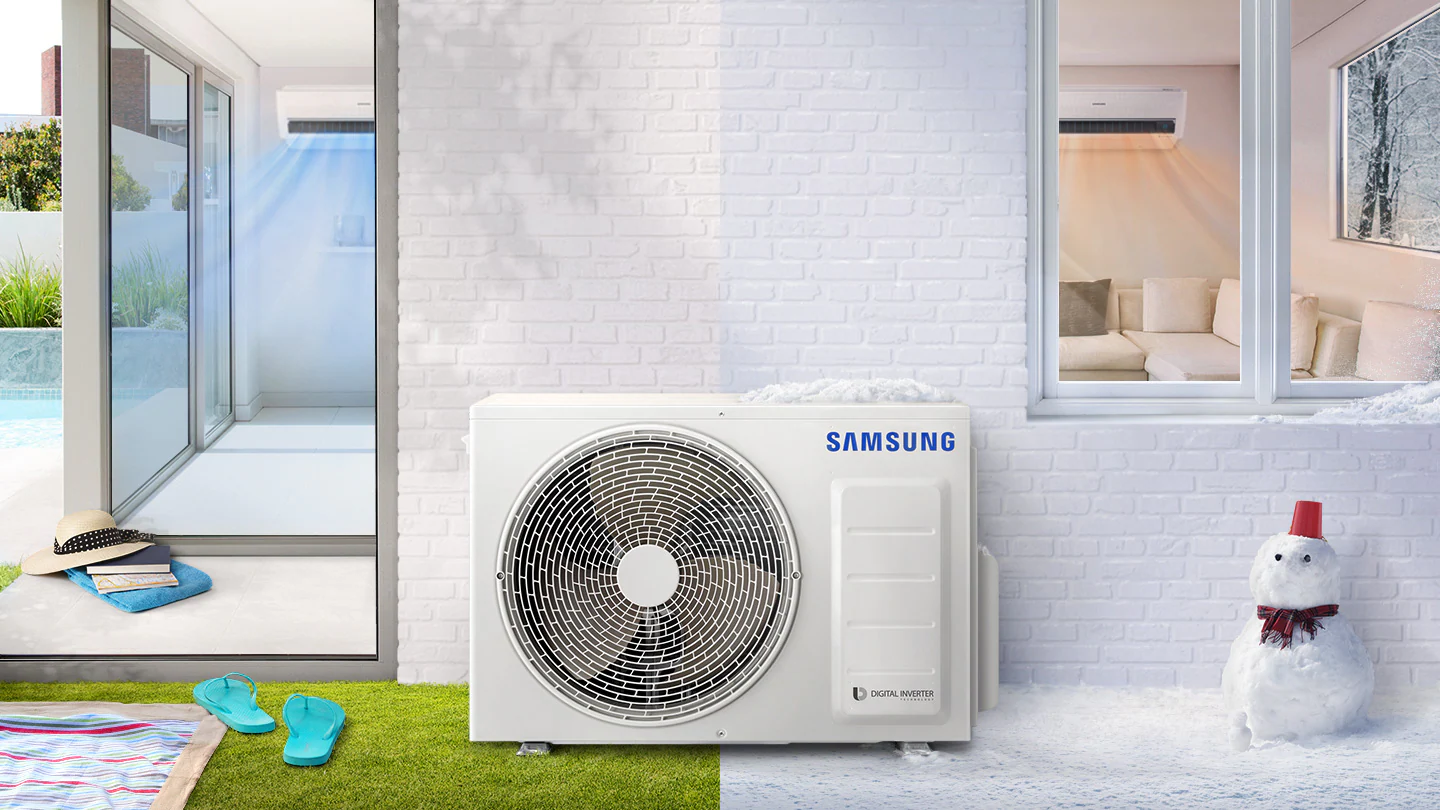

The unit runs across a broad range of outdoor temperatures - through summer heat and winter frost alike, holding heating mode.
AR-EH03EWireless remote
MWR-SH11NTouch wired controller
MWR-WG00LNWired controller
MWR-WE13NWired controller
MIM-H04NWi-Fi kit
MRW-TARemote temperature sensorCE · RoHS · ISO 9001. Full certification available on request.
For a multi-split system the energy efficiency class depends on the specific combination of outdoor and indoor units. We calculate the exact figure for your site configuration.
| 5.0 kW |  10.0 kW |  14.0 kW | |
|---|---|---|---|
| Model | AJ050TXJ2KH | AJ100TXJ5KH | AJ140TXJ5KH |
| Cooling | 5.0 kW | 10.0 kW | 14.0 kW |
| Heating | 5.7 kW | 12.0 kW | 15.0 kW |
| Indoor units | 2 | 5 | 5 |
| Refrigerant | R410A | R410A | R410A |
| Help me choose | |||
