A wall unit for a VRF loop - for rooms where ceiling mounting is impossible or simply unnecessary. In WindFree™ mode air disperses through micro perforations, and the night setting keeps it especially quiet.
Request a quote| Model | AM022TNVDKH/TK |
|---|---|
| Type | DVM - wall-mounted, WindFree™ |
| Cooling | 2.2 kW |
| Heating | 2.5 kW |
| Model range | AM022TNVDKH 2.2 · AM028TNVDKH 2.8 · AM036TNVDKH 3.6 · AM056TNVDKH 5.6 · AM082TNVDKH 8.2 kW |
| Voltage | 1 phase, 220-240 V, 50 Hz |
| Refrigerant | R410A |
| Control | SmartThings · wired/wireless · BMS |

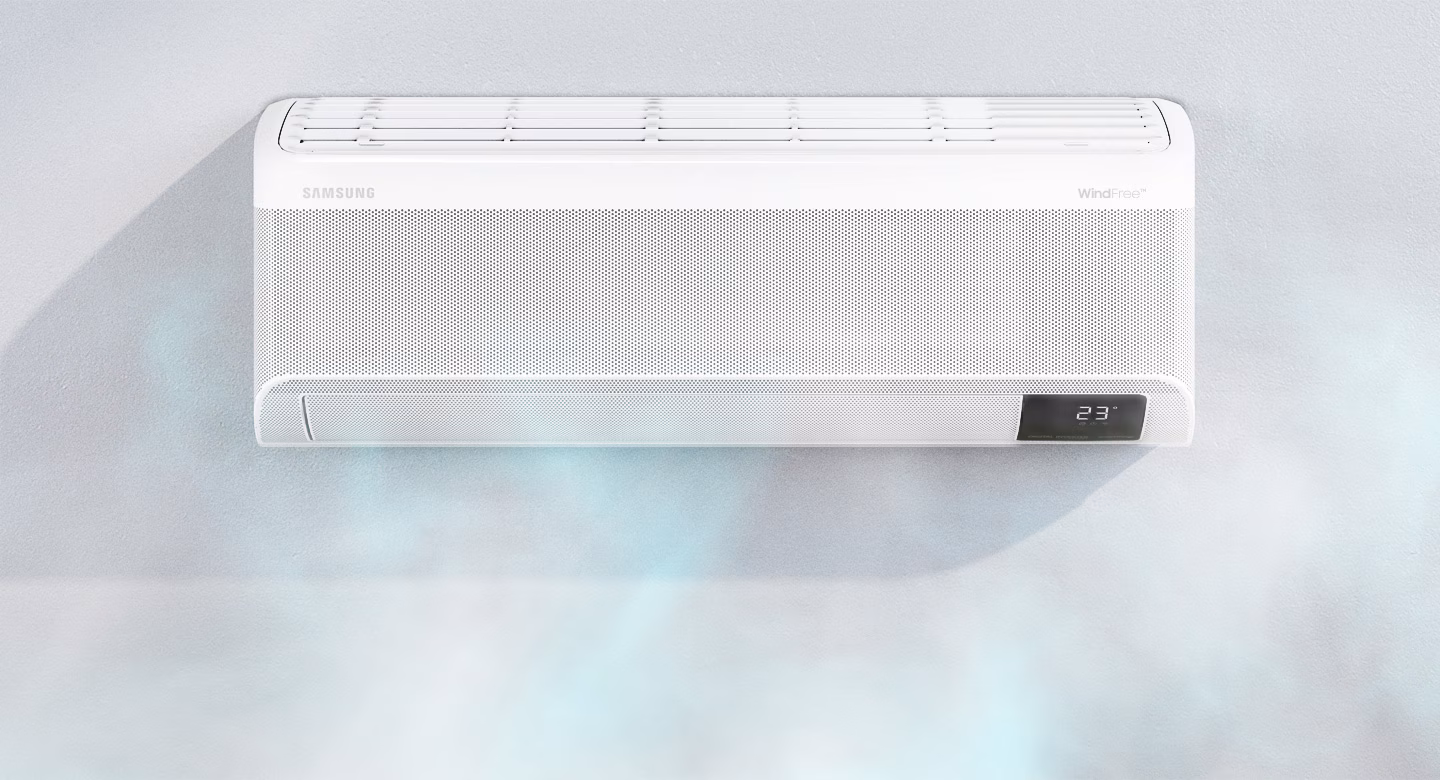

In WindFree™ mode air spreads gently, so no direct cold stream hits the skin.

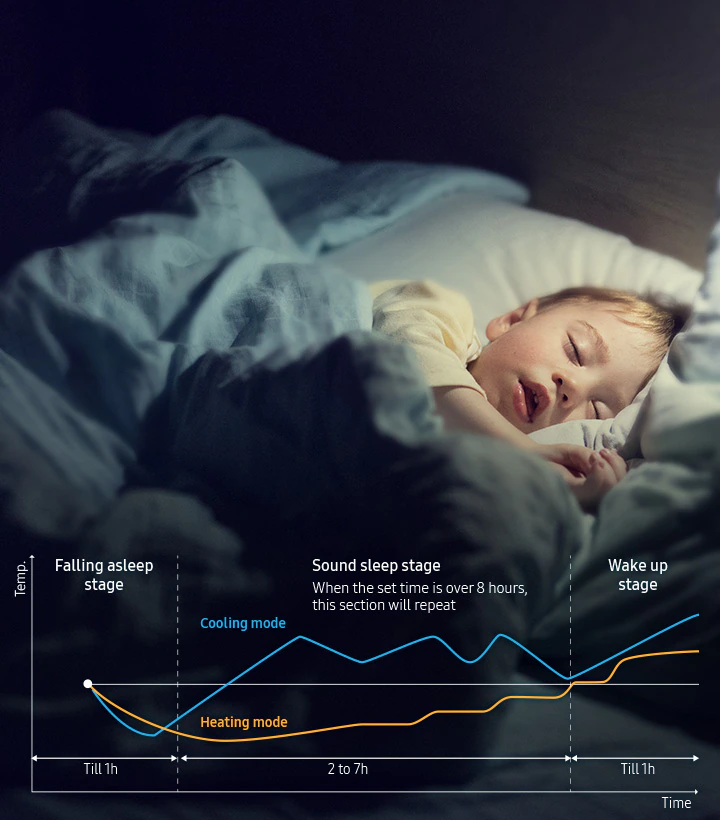

At night the unit lowers output and noise, holding the temperature at a level that suits sleeping.

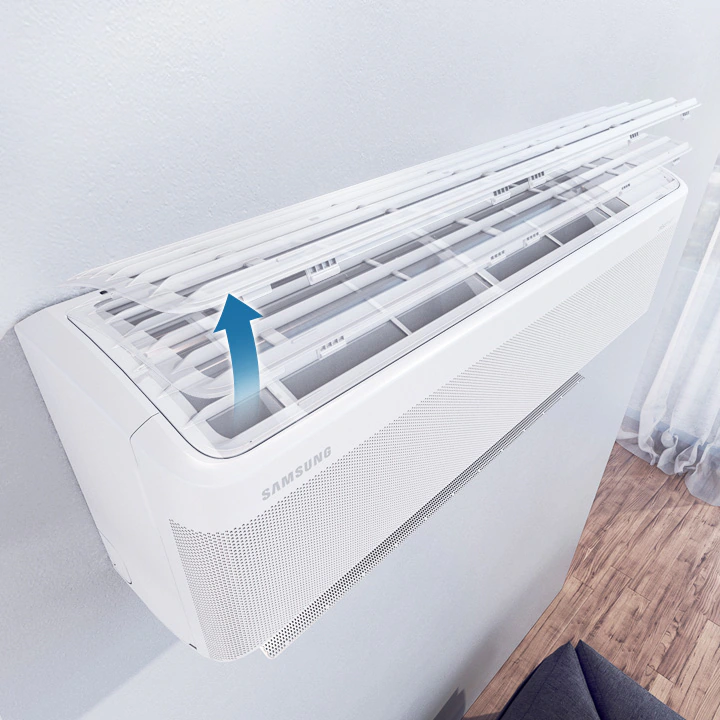

The filter releases from the front and washes clean - servicing needs no tools.
AR-EH03EWireless remote
AR-KH03EWireless remote
AR-CH01ESolar-cell wireless remote
MWR-SH11NTouch wired controller
MWR-WG01LNWired controller
MWR-WE13NWired controller
MIM-H04NWi-Fi kit
MRW-TARemote temperature sensorCE · RoHS · ISO 9001. Full certification available on request.
The energy efficiency class depends on the specific combination of indoor and outdoor units. We calculate the exact figure for your site configuration.
