A medium static pressure ducted unit that hides entirely in a suspended ceiling and feeds several diffusers through ductwork. The higher pressure allows longer duct runs than low static pressure units.
Request a quote| Model | AM022DNMDKH/TK |
|---|---|
| Type | DVM - duct, medium static pressure |
| Cooling | 2.2 kW |
| Heating | 2.5 kW |
| Model range | AM022DNMDKH 2.2 · AM028DNMDKH 2.8 · AM036DNMDKH 3.6 · AM045DNMDKH 4.5 · AM056DNMDKH 5.6 · AM071DNMDKH 7.1 · AM090DNMDKH 9.0 kW |
| Voltage | 1 phase, 220-240 V, 50 Hz |
| Refrigerant | R410A |
| Control | SmartThings · wired/wireless · BMS |

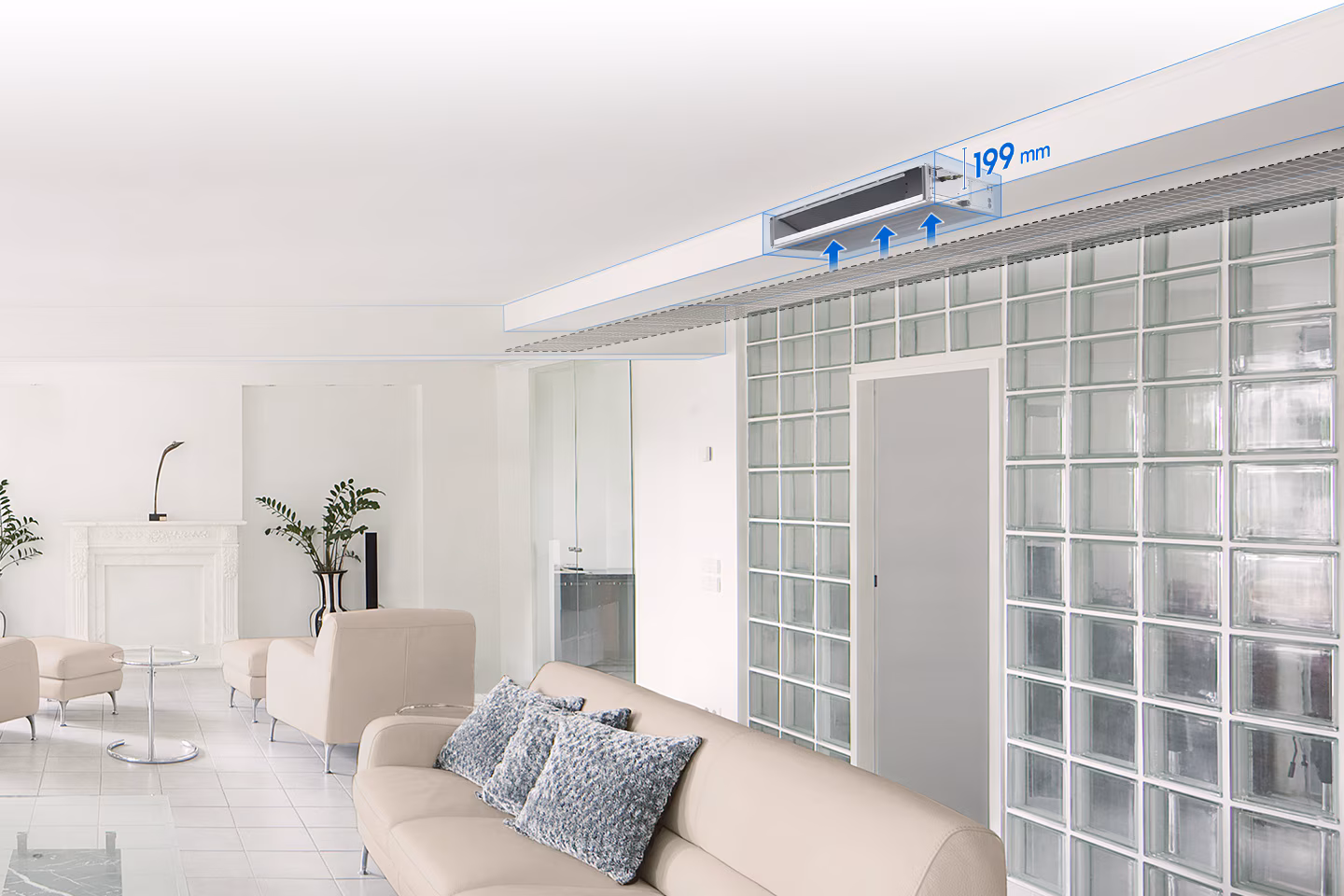

The unit stays behind the ceiling - only the diffuser grille shows in the room.

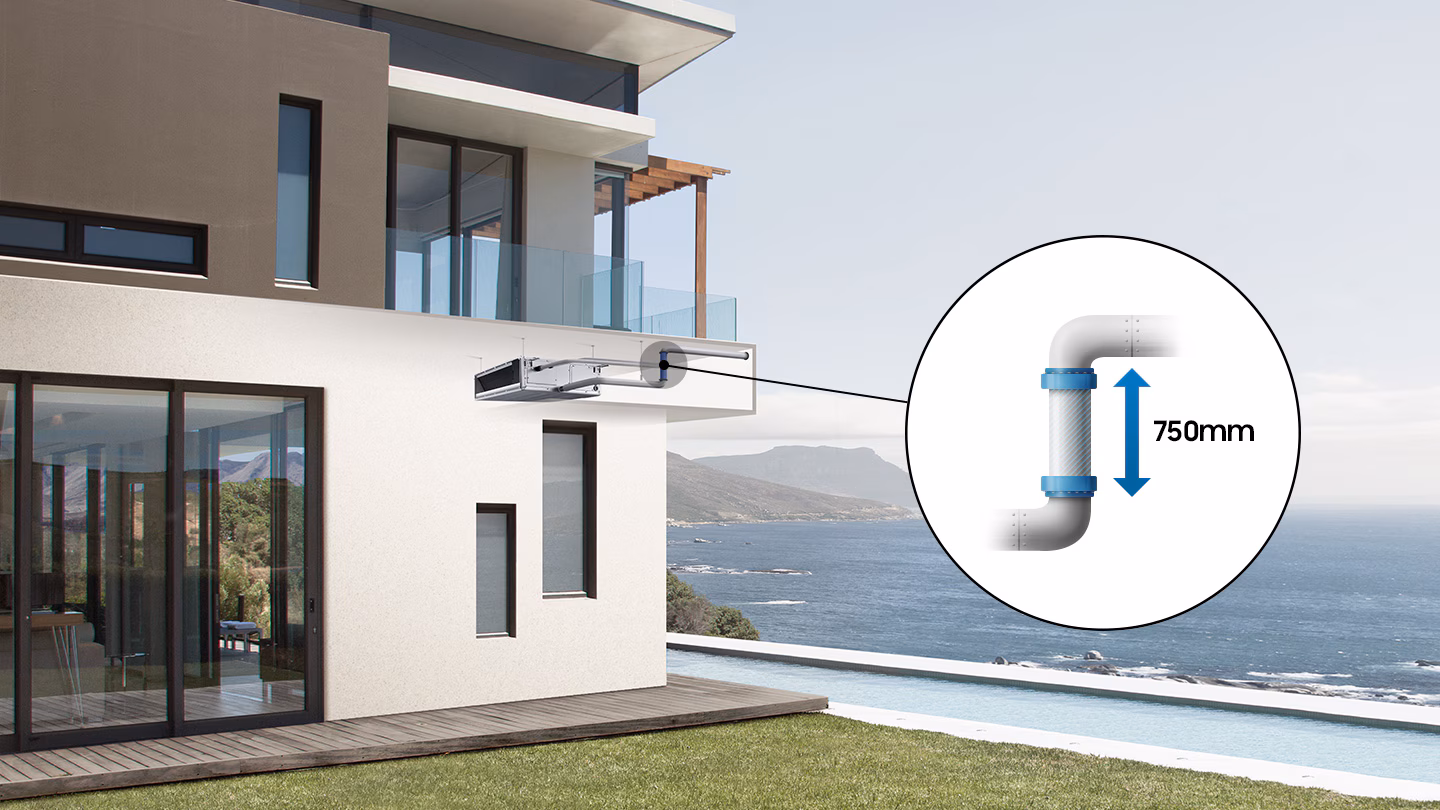

Medium static pressure permits longer duct runs and more diffusers, so one unit can serve several spaces.

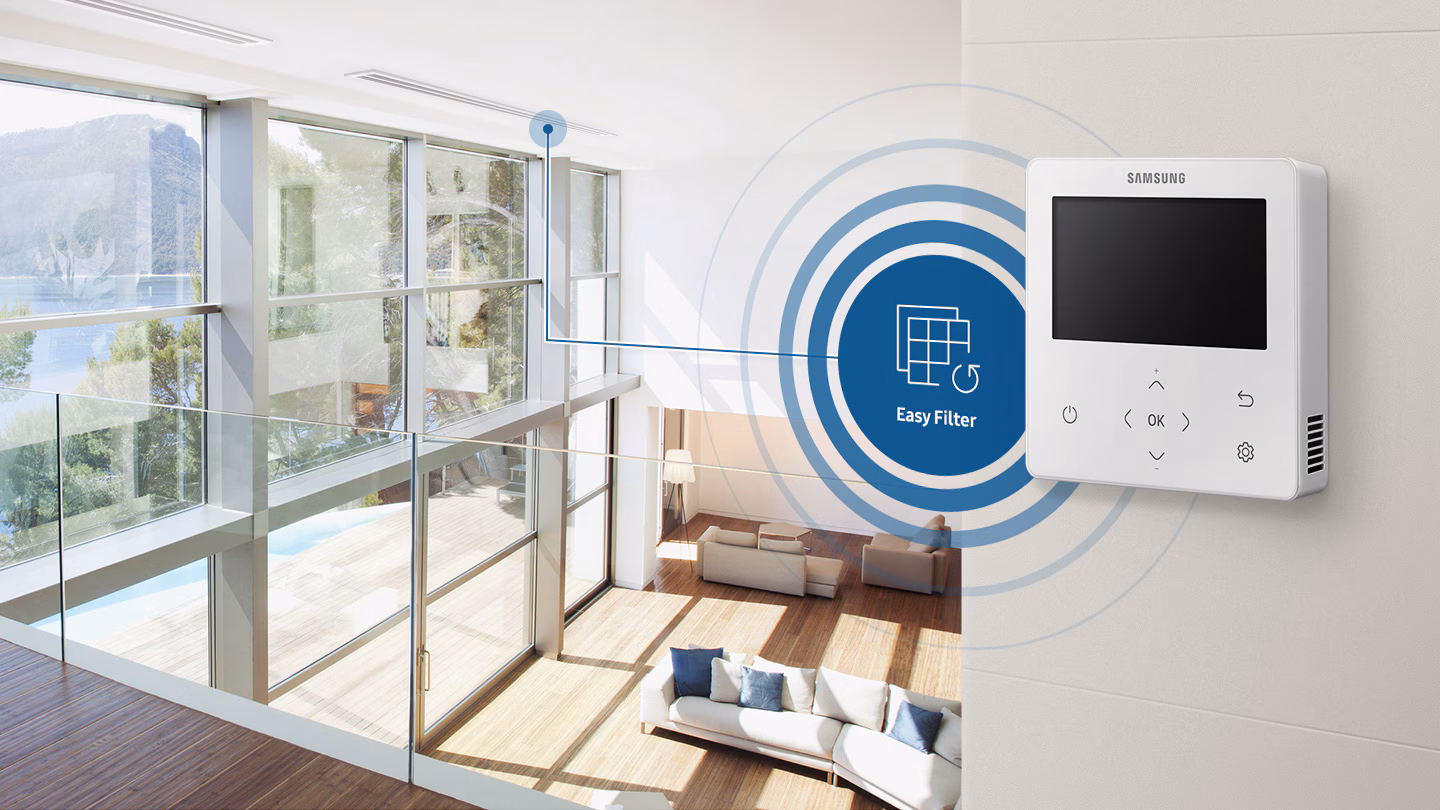

The system watches the filter state itself and tells you when cleaning is due.
AR-EH03EWireless remote
AR-KH03EWireless remote
AR-CH01ESolar-cell wireless remote
MWR-SH11NTouch wired controller
MWR-WG01LNWired controller
MWR-WE13NWired controller
MIM-H04NWi-Fi kit
MRW-TARemote temperature sensorCE · RoHS · ISO 9001. Full certification available on request.
The energy efficiency class depends on the specific combination of indoor and outdoor units. We calculate the exact figure for your site configuration.
